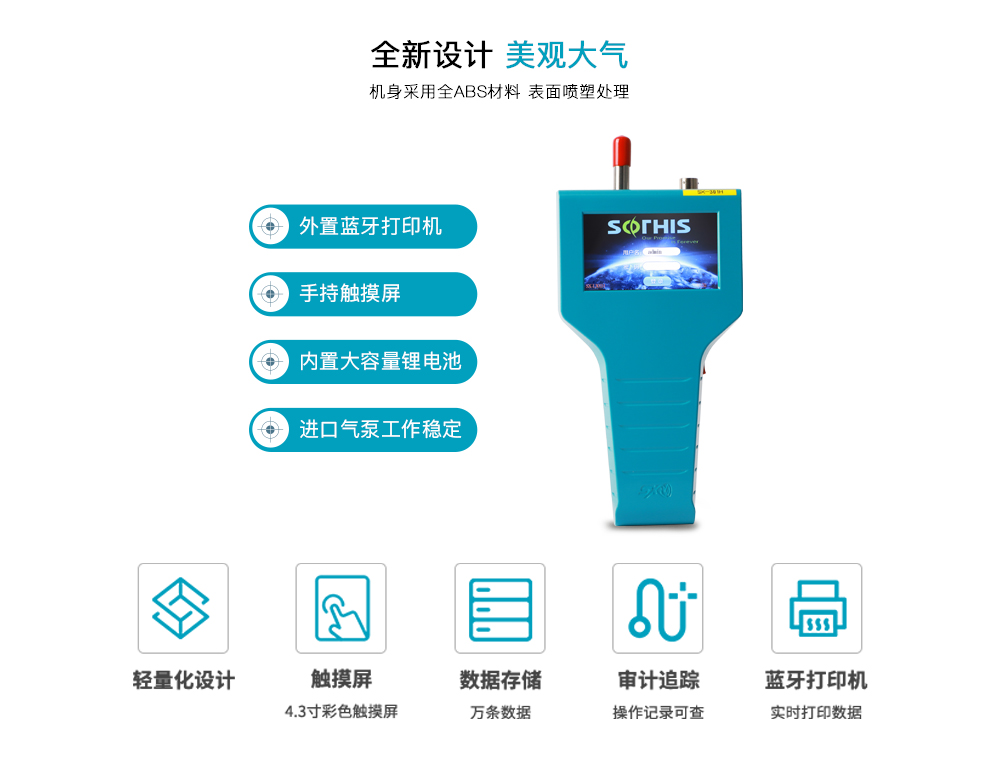

The SX-L301H type dust particle counter is a new generation of touch-screen handheld devices developed by our company, with a sampling flow rate of 2.83L/min±5% (0.1CFM). The instrument features a 4.3-inch color touchscreen, an elegant and robust design, and is made from full ABS material with a surface that has been spray-coated. It uses a pneumatic pump for continuous and stable operation, featuring ultra-low noise, energy efficiency, and environmental friendliness. It is equipped with an imported digital flow sensor for dynamic and precise control of the sampling flow rate. The instrument can be powered by AC or a large-capacity lithium battery, making it ideal for mobile detection in areas without AC power. The instrument is user-friendly, with a simple operation and a user-friendly interface, enabling efficient and effective detection of suspended particles in clean environments. It is the preferred choice for rapid testing of cleanroom cleanliness in industries such as biopharmaceuticals, electronics, semiconductors, and new energy.
Advantage
Function
Apply
| Model | SX-L301H |
| Grain size channel | 0.3μm,0.5μm,1.0μm,3.0μm,5.0μm,10.0μm |
| Sampling flow | 2.83L/min ±5%(0.1CFM) |
| Laser light source |
Imported laser diodes (continuous life up to 100,000 hours)
|
| Imported air pump |
DC air pump, continuous working flow stable, energy-saving and environmentally friendly, efficient and low-noise
|
| Verification criteria | JJF1190-2008,GB/T6167-2007 |
| Relative error of repeatability | ≤10%FS |
| Particle size distribution error |
≤30%
|
| Particle concentration indication error |
≤±30%FS
|
| Self-cleaning time |
≤10min (counting is zero for 3 consecutive times within 10 minutes)
|
| Sampling time | User set (1~14400 seconds) |
| Sampling delay | User set (1~255 seconds) |
|
District management
|
You can preset 100 sampling areas and save the configuration parameters independently
|
| Number of sampling points | 1~50 |
| Number of samples (per point) | 1~50 |
| Sampling concentration | 35,000 particles/L |
| Counting mode |
Cumulative number, concentration (m³)
|
| Data memory capacity |
1~5000 sets of measurement data, can be queried, wired export (USB port)
|
|
Cleanliness grade judgment criteria
|
ISO 14644.1, GMP dynamic and GMP static
|
|
Operate time
|
The continuous test time after full charge is more than 4 hours
|
|
User management
|
5 users, independent password
|
|
Authority management
|
Three levels of permission, data storage and retrieval, printing
|
|
Power supply
|
DC8.5V 4A
|
|
Other accessories
|
Wireless Bluetooth printer, USB cable, charger
|
|
Environmental requirements
|
Usage environment: temperature 0~40℃ relative humidity 10~70%
|
|
Storage environment: temperature-30℃~45℃ relative humidity 0~90%
|
|
|
Outline dimension
|
240 long x 135 wide x 68 thick (mm) excluding sampling port
|
|
Exterior material
|
ABS
|
|
Weight
|
0.85kg
|
|
Power
|
Counter (12W), charger (34W)
|
|
Quality Assurance
|
The warranty is 1 year, and optional extended warranty service can be selected
|
