Beijing Union Pharmaceutical Factory LTD

Peking Union Medical College Pharmaceutical Co., Ltd. was founded in 1958 and registered in 1981. It is a state-owned enterprise affiliated with the Institute of Materia Medica, Chinese Academy of Medical Sciences. It has been included in the implementation scope of the central state-owned capital operating budget and ranked 118th in the chemical pharmaceutical industry enterprise legal person unit according to the main business income of the pharmaceutical industry and 65th in the total profit order of the 2018 China Pharmaceutical Statistical Annual Report.
  
Beijing Union Medical Products Co., Ltd. actively implements the strategy of coordinated development between Beijing and Hebei. The Beijing factory is located in the Daxing Biomedical Industry Base of Zhongguancun National Independent Innovation Demonstration Zone, with a construction area of 46000 square meters. Tablets, drop pills, hard capsules, creams, freeze-dried powder injections (anti-tumor drugs) and small volume injections (including anti-tumor drugs) have passed GMP certification. Bicyclol tablets have obtained GMP certification from Ukraine, a member state of the International Convention on Drug Inspection. The Cangzhou branch is located in the Biomedical Industry Park of Bohai New Area, Cangzhou, Beijing. It officially started production of bicyclic alcohol raw materials at the end of 2019.
  
  
Recently, Peking Union Medical Products Co., Ltd. ordered 2 weighing rooms from Suzhou Suxin Purification Equipment Factory, which fully proves Peking Union Medical Products Co., Ltd.'s recognition of Suxin products.
  
  

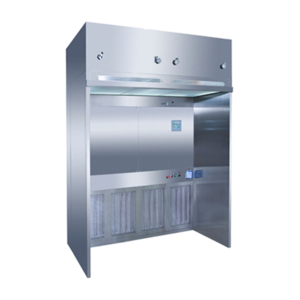

The DB series weighing room is a specialized local purification equipment used in pharmaceutical, microbiological research, and scientific experiments. It is widely used for weighing and measuring raw materials, sampling antibiotics, and processing hormone drugs, whether they are powders or liquids.

The DB series weighing room filters the air through primary and medium efficiency filters, and then presses it into the static pressure box by a centrifugal fan. After passing through the high-efficiency filter, the airflow is diffused to the outlet surface and blown out, forming a vertical unidirectional airflow to protect operators and prevent drug contamination. The operating area of the weighing hood discharges 10% of the circulating air and maintains a negative pressure state to avoid environmental pollution and cross contamination of drugs.

Design reference basis:

1. Pharmaceutical industry standards
2. Chinese GMP (2010 version) standard
3. EU GMP standards
4. FDA regulations and the latest CGMP guidelines

  
The DB series weighing room
  

Reference model	Carbon type	Original auxiliary type
	DB- 1100×550 ×950	DB-1100×900×2000	DB-1100×1200×2000	DB- 1400×1200 ×2000	DB-1700×1300×2000	DB-1900×1300×2000	DB-2400×1500×2000	DB- 2900×1500 ×2000
External dimensions	1200×750 ×2150	1200×1300×2650	1200×1600×2650	1500×1800 ×2650	1800×1900×2650	2000×1900×2650	2500×2100×2650	3000×2100 ×2650
W*H*D（mm）
Size of workspace	1100×550 ×950	1100×900×2000	1100×1200×2000	1400×1200 ×2000	1700×1300×2000	1900×1300×2000	2400×1500 ×2000	2900×1500 ×2000
W*H*D（mm）
Cleanliness level	ISO Level 5 (Class 100)/ISO Level 6 (Class 1000)
Primary Filter	G4（90%@5μm）
Medium efficiency filter	F8（85%~95%@1~5μm）
High efficiency filter	H14（99.99%~99.999%@0.5μm）
Average airflow velocity	0.45±20%m/s
Illuminance	≥300Lx
Noise	≤75dB(A)
Power supply	AC 380V/50Hz
Control mode	Advanced configuration or basic configuration
Material	SUS 304 T=1.2mm， Magnesium oxide+rock wool fireproof board
Air exhaust	10%

Note: The above dimensions are for reference only and customized non-standard products are accepted
