Recently, Su Xin successfully partnered with Shenzhen Yuanxing Gene Technology Co., Ltd. to provide them with an SX-SG-6500 pure water smoke generator.
The SX-SG-6500 pure water smoke generator can generate high concentration water vapor (particle size range: 1-10 μ m, concentration above 80%), with high visibility and no pollution. After the water vapor is emitted in the clean room, there are no residual substances. ISO14644-3 and the new version of GMP require an evaluation of the airflow direction for clean room acceptance. The SX-SG-6500 pure water smoke generator is suitable for capturing and recording airflow patterns in clean rooms and local clean environments, and is widely used in semiconductor and pharmaceutical cleanrooms.
Product Features
1. The optimal water level range for smoking for more than 20 minutes
2. Can be connected to a smoke pipe to produce curtain shaped smoke (can be extended up to 2 meters)
3. Low noise, ≤ 50db
4. Ultra pure spray without pollution
5. Used for testing in purification workshops ranging from 1 to 10000 levels
Application scope
1. Clean room laminar flow test
2. Airflow balance test
3. Testing of exhaust system for chemical treatment equipment
4. Verification of personnel safety evacuation system
5. Leakage testing of air ducts
Technical Indicators
| External power supply | AC 220V 50Hz |
| Inner box capacity | 4L |
| Medium | Pure water |
| Product host size | 330×230×350 mm（Length×Width×Height） |
| Net weight of the host | 9.2Kg |
| Input voltage of smoke emitting components | DC 45V |
| Rated power consumption | 216W |
| Fogging amount | ≥6500ml/h |
| Atomized particle size | 1-10um |
| Optimal atomization water level | 28mm |
| Fog height | 120~150mm |

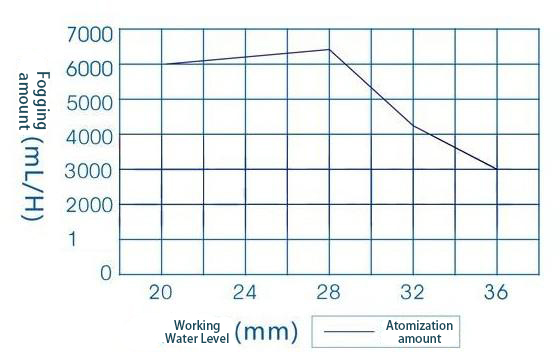

The relationship between fog generation and working water level is shown in the following figure
Product Features
1. This type of water mist generator can generate high concentration water mist with high visibility.
2. After the water vapor is emitted in the clean room, it will not cause secondary pollution.
3. Suitable for semiconductor and pharmaceutical cleanrooms.
